D365 – System Views – Does Not Contain Data

The Advanced Find functionality within D365 v9 allows us to search for records that have no data in a related entity – a NOT IN query. For example, provide a list of Contacts that are not the Primary Contact for an Account.

advanced-find-NOT-IN

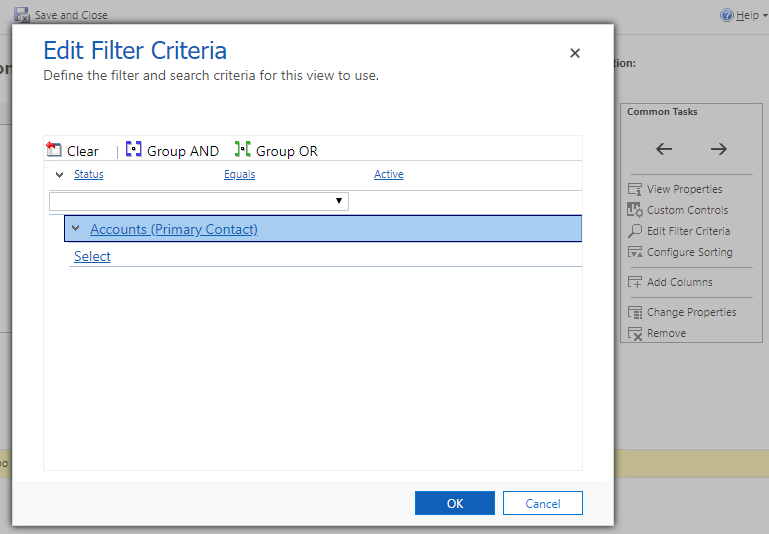

However, if we try to create the same using a System View there is currently no option to do a NOT IN query.

system-view-filter

To create a System View which contains a NOT IN query I had to complete the following steps.

  1. Create a basic System View with the required column layout and Publish the View.

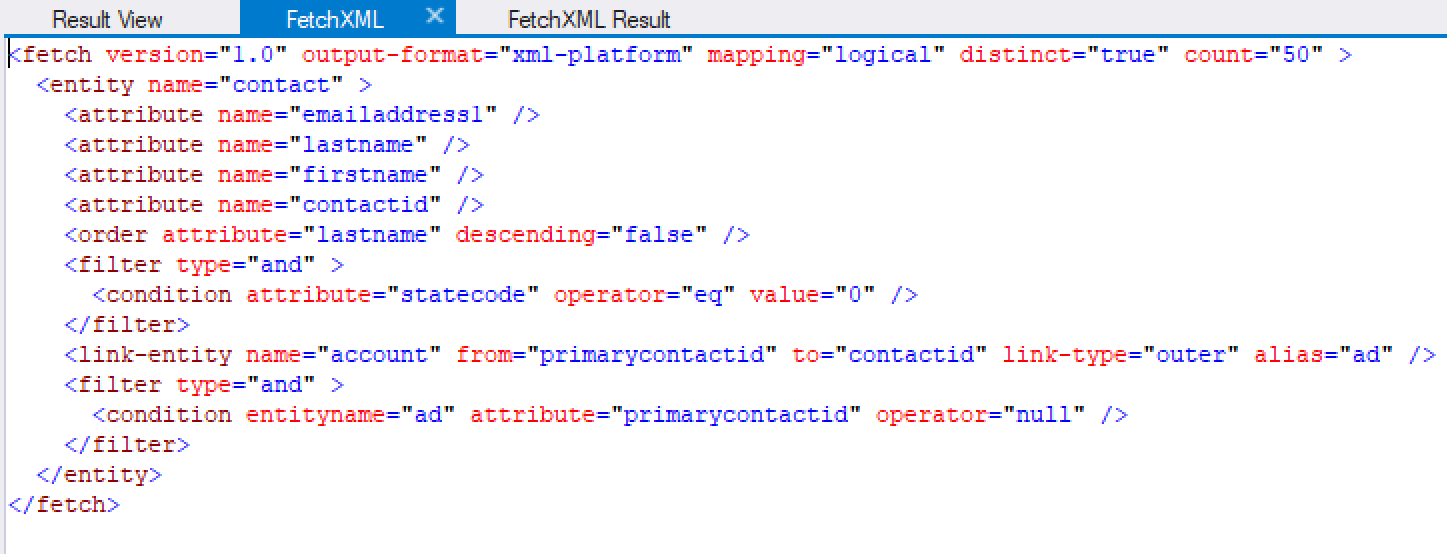

  2. Using XrmToolBox and the View Designer Plugin I opened the System View and edited the query (using FetchXML Builder)
  3. Finally, save and publish the changes to the System View.

NOT-IN-FetchXML

A few things I have found when creating NOT IN System Views.

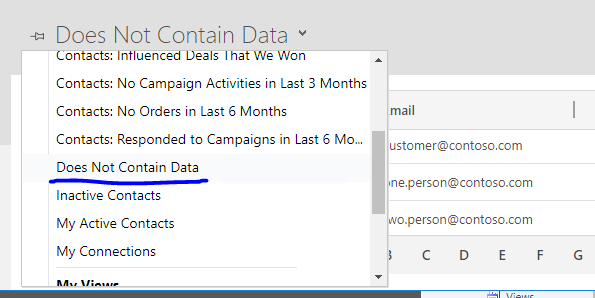

    1. The System View does get created in the list of System Views for the entity and displays the correct content.

system-view-1

    1. When you open the Advanced Find from the System View, the filters for the System View are displayed correctly but the name of the System View we created is not listed.

system-view-2

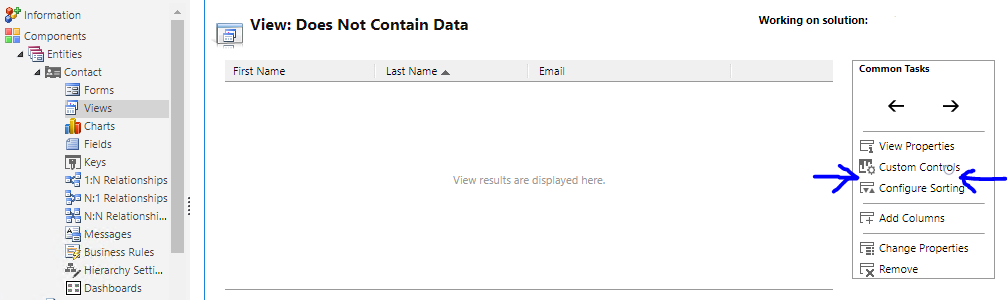

    1. When you re-open the System View in the D365 solution after you have made the NOT IN modification, the option to Edit the filter criteria is no longer available. Any additional changes to the System View would need to be made using the XrmToolBox View Designer Plugin.

system-view-3

Advertisements

Visual Studio & Node JS

When you install Visual Studio 2017 it very kindly gives you the option to install Node.js

The only problem with this is that if you are not using v15.3 (or greater) of VS2017 then working with Azure Functions can present a couple of unusal issues.

  • Not being able to install the Azure Client Tools.
  • My application not being able to read from the local.settings.json file using the WebConfigurationManager.

The problem turned out to be the version of Node.js that was installed with Visual Studio and that I needed to update it to a more recent version. After completing the updated installation I was able to install the Azure tools and successfully read values from my local.settings.json file in my local development environment.

Google Recaptcha verification

Using the Google Recaptcha verification API should be fairly straight forward. The one thing the documentation does not make clear is how to POST to the SiteVerify endpoint. So after playing around with the various options in Postman, I have found the following code works from the server side using C#.

                HttpClient httpClient = new HttpClient();

                KeyValuePair<string, string> secret = new KeyValuePair<string, string>("secret", recaptcha.Secret);
                KeyValuePair<string, string> response = new KeyValuePair<string, string>("response", recaptcha.Response);

                List<KeyValuePair<string, string>> postData = new List<KeyValuePair<string, string>>();
                postData.Add(secret);
                postData.Add(response);

                using (var content = new FormUrlEncodedContent(postData))
                {
                    content.Headers.Clear();
                    content.Headers.Add("Content-Type", "application/x-www-form-urlencoded");

                    var recaptchaResponse = await httpClient.PostAsync(RecaptchaAPIUrl, content);

                    var returnValue = recaptchaResponse.Content.ReadAsStringAsync().Result;

                    var vr = JsonConvert.DeserializeObject<VerifiedResponse>(returnValue);

                    return this.Ok(vr);
                }
